Safonau technegol cynnyrch:

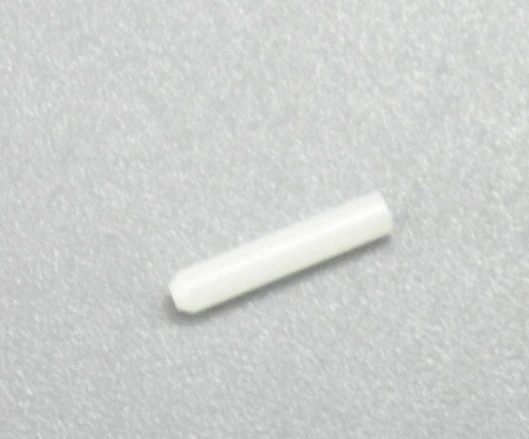

Mewnosod deunydd: Wedi'i wneud o bowdr zirconia ZrO2, gyda lliw gwyn llaethog afloyw sy'n cwrdd â safonau RoHS.
Cyfansoddiad cemegol:
|
ZrO2 (Wt%) |
≈94.3 |
|
Y2O3 (Wt%) |
5.40±0.20 |
|
A12O2 (Wt%) |
0.25±0.05 |
|
SiO2 (Wt%) |
Llai na neu'n hafal i 0.03 |
|
Na2O(Wt%) |
Llai na neu'n hafal i 0.01 |
|
Fe2O3 (Wt%) |
Llai na neu'n hafal i 0.01 |
Manylebau plwg, mathau, a gofynion maint:
Dosbarthiad manyleb plwg confensiynol (dosbarthiad manyleb model)
|
Math SC |
SC/SM/PC SC/MM/PC SC/SM/APC |
|
|
Math o LC |
LC/SM LC/MM |
|
Gofynion technegol:
Math SC
|
Eitem Prosiect |
Uned |
Manyleb |
|
|
SM |
MM |
||
|
Diamedr allanol |
Mm |
Φ2.4990±0.0005 |
|
|
Concentricity |
Mm |
Llai na neu'n hafal i 0.0014 |
Llai na neu'n hafal i 0.004 |
|
Diamedr Mewnol |
Mm |
Φ0.125~Φ0.126 |
Φ0.127~Φ0.130 |
|
Ymddangosiad Endface |
/ |
Crynder ac ymddangosiad cymwys |
|
|
Hyd |
Mm |
10.50±0.05 |
|
Math o LC
|
Eitem Prosiect |
Uned |
Manyleb |
|
|
SM |
MM |
||
|
Diamedr allanol |
Mm |
Φ1.2490±0.0005 |
|
|
Concentricity |
Mm |
Llai na neu'n hafal i 0.0014 |
Llai na neu'n hafal i 0.004 |
|
Diamedr Mewnol |
Mm |
Φ0.125~Φ0.126 |
Φ0.127~Φ0.130 |
|
Ymddangosiad Endface |
/ |
Crynder ac ymddangosiad cymwys |
|
|
Hyd |
Mm |
10.50±0.05 |
|
|
Diamedr Endface |
Mm |
Φ0.60+0.15/-0 |
|
|
Gradd y siamffer blaen |
gradd |
35 gradd ±2.5 gradd |
|
Manylebau handlen gynffon
|
Mewnosod manylebau |
Manylebau handlen gynffon |
Hyd ymwthio allan |
Braslun |
Grym tynnu allan |
|
SC/PC |
Dur di-staen SUS303 neu blatiau nicel copr, lled slot 1.5mm |
7.95+0.05/0 |
|
>50N |
|
SC/APC |
Dur di-staen SUS303 neu blatiau nicel copr, lled slot 1.35mm |
8.10+0.05/0 |
|
|
|
LC/PC |
Dur di-staen SUS303 neu blatio nicel copr |
4.95+0.05/0 |
|
|
|
LC/APC |
5.10+0.05/0 |
|
||
|
ST/PC |
7.95+0.05/0 |
|
